Tungsten heavy alloys (WHA)

The jack of all trades among tungsten alloys. Due to its high variable density, a wide range of properties can be achieved depending on the addition of iron or copper.

Tungsten heavy alloys has a tungsten content between 85 and 98.5% by weight. The remainder either consists of lightly magnetic nickel/iron or nonmagnetic (paramagnetic) nickel/copper. Tungsten heavy alloys are characterized by high densities ranging from 17 to 18.5 g/cm³ and by their high strength and ductility. Compared to chemically pure tungsten, WHAs are much more easily machinable. Turning, milling, and drilling operations are performed with carbide tools – thread cutting is also possible. As a result, even complex components can be manufactured to customer drawing.

Properties

  • High absorption capacity
  • High variable density
  • High modulus of elasticity
  • Good machinability

Applications

  • Drilling rods, turning tip holders, grind disc shanks

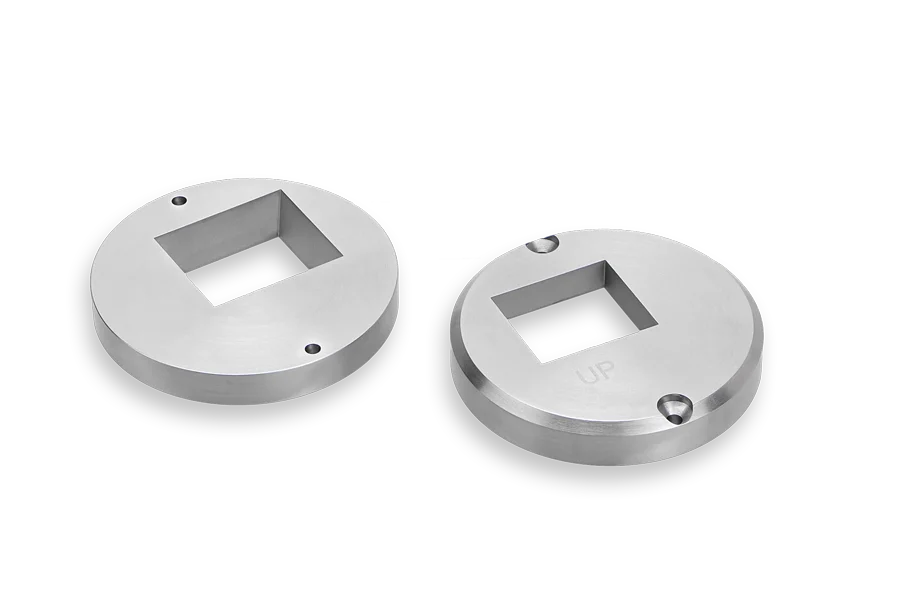

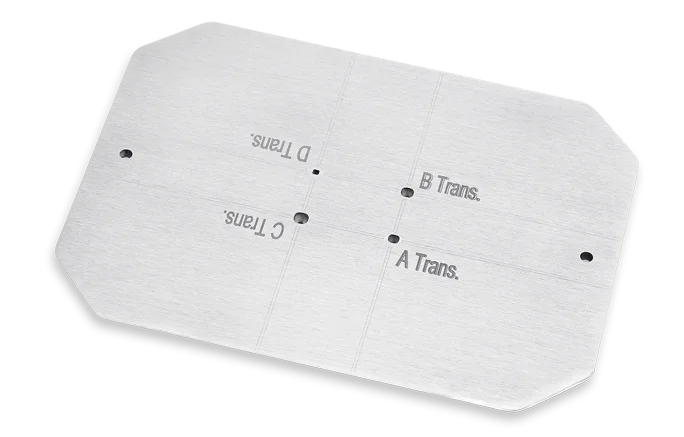

  • Shielding elements, collimators for radiation protection
  • Counterweights for crankshafts
  • Balancing weights for generators and turbines
  • Anvils and electrodes for hot heading
  • Vibration hammers
  • Clock industry
  • Golf clubs (putters)
  • Darts

Available formats

  • Formed parts to drawing
  • Rods
  • Plates
  • Blocks
  • Sheetmetal
Wolfram-Schwermetall-NHT-Negele Hartmetall Technik_WSM-Zeichnungsteile-Kunden Einzelanfertigung
Wolfram-Schwermetall-NHT-Negele Hartmetall Technik_WSM-Zeichnungsteile-Kunden Einzelanfertigung

Physical and chemical properties

Note: Subject to technical changes. Slight deviations in value are production-related.
Explanations: *sm=slight ferromagnetic; *pm=paramagnetic
